Project Description

Electric – Indirect Boiling Pan
Power : 36 kW – 400V, 3NPE AC /50-60Hz
Dimension : 1600 x 1100 x 900/930 mm
Control type : Temperature, energy and time control
Cooking Surface/Capacity : 300 liters, Ø 780 mm
Net Weight : 469 kg
Gross Weight : 583 kg
Packaging Dimension : 1630 x 1130 x 1050 mm





Modular Cooking – Tilting Pan

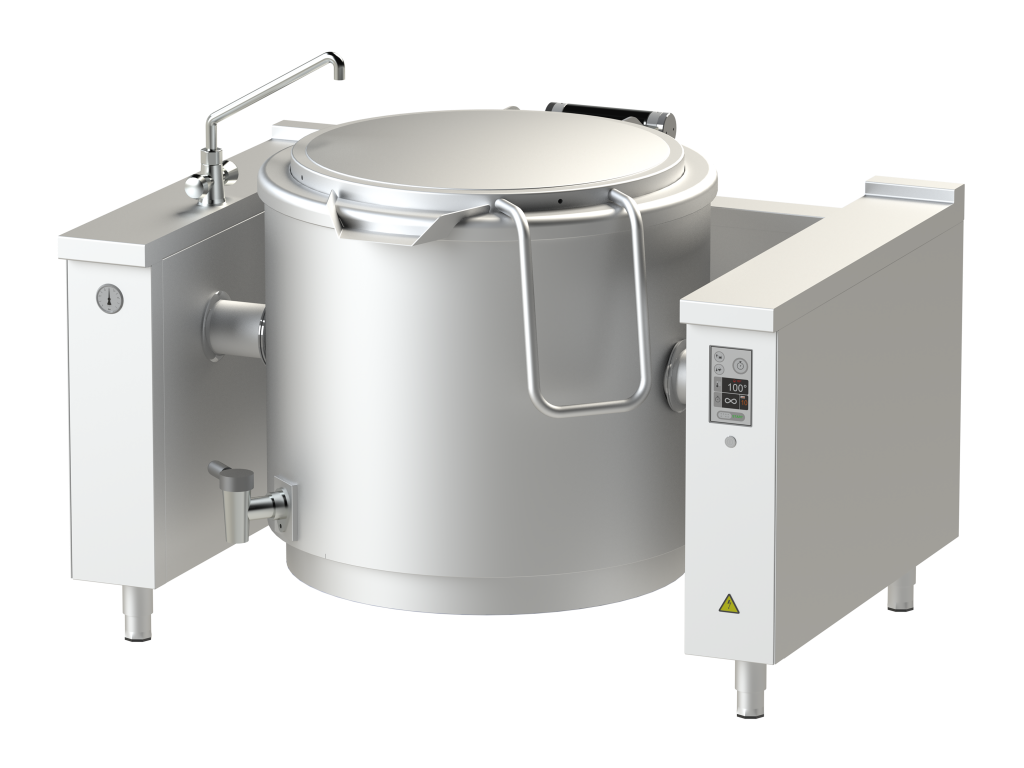

Electric – Indirect Boiling Pan
NEBP 300 TC TA IND

Modular indirect electric tilting boiling pan with 1100 mm depth, and 300 liters capacity powered with 36 kW Incoloy heaters.
Usable for cooking liquid food, vegetable, starch meal, sauces soups, or acidic dishes.
Made of AISI 304 with 2 mm top thickness, boiling kettle is made of 3 mm thick AISI 316 bottom and 2 mm thick AISI 304 sleeve. Indirectly heated to improve temperature distribution during boiling and prolong the lifetime of the kettle.

13/01/2021

NEBP 300 TC TA IND
