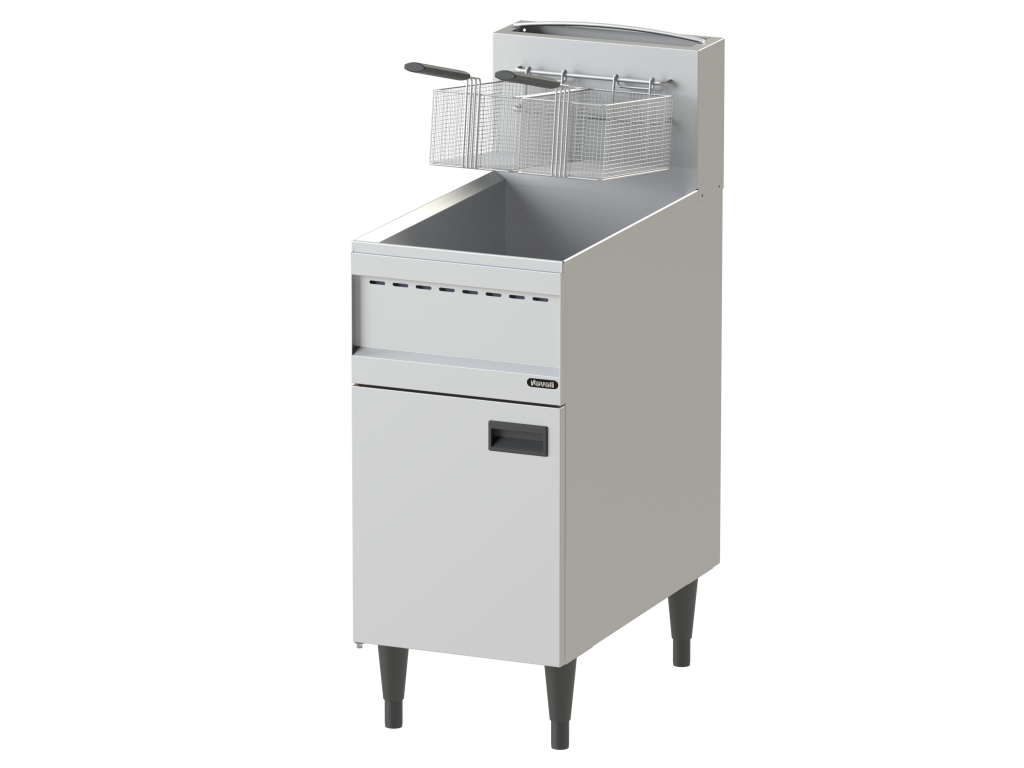

Nayati GFE 40 RS : 23 Liter High-Efficiency Gas Fryer

The Nayati GFE 40 RS is a free-standing gas fryer designed for high-volume commercial kitchens requiring consistent thermal recovery and oil longevity. Engineered with a 23-liter oil capacity, this unit utilizes four internal tubular burners to deliver a total heat input of 21 kW.

The unit features a dedicated cold zone beneath the tank baffle that captures food particles, preventing carbonization and prolonging the usable life of the frying medium. Construction includes a 1.5 mm thick AISI 304 stainless steel tank and an AISI 430 external housing, ensuring durability and ease of cleaning.

Economic Fryer - Fryer
Gas - Fryer
GFE 40 RS

Technical Specifications

Feature Category Specification Value
Performance
 Total Power Output 21 kW (18,060 kCal/h)
Oil Capacity 23 Liters
Temperature Range 100°C – 200°C
Burner Type 4x Atmospheric Tubular Burners
Dimensions
 Exterior (W x D x H) 400 x 735 x 870/1130 mm
Cooking Surface 337 x 340 mm
Net Weight 51 kg
Installation
 Gas Connection DN 20 (3/4")
Oil Drain DN 25 (1")
Gas Pressure (Natural Gas) G20: 20 mbar / G25: 20-25 mbar
Gas Pressure (LPG) G30/G31: 28-30/37 or 50 mbar
HVAC Data
 Direct Heat Emission 1.89 kW
Latent Heat Emission 14.70 kW
Steam Emission 21.63 kg/h

Yes, but you must follow the "Melting" procedure to prevent fire. Do not melt solid blocks directly on top of burner tubes. Cut shortening into 1-inch cubes and pack them below and between tubes. Set the thermostat to 65°C and cycle the burners (4 seconds ON, 30 seconds OFF) until melted

The unit releases 14.70 kW of latent heat and 21.63 kg/h of steam. It is recommended to install the fryer under an efficient extraction hood capable of evacuating combustion products (Type A1 or B21 installation).

Only drain the oil when it is cool to avoid severe burns. Ensure the drain valve is clear of food particles using a nylon brush (do not use metal rods) before opening the valve into the provided mobile oil filter or container.

  • No, the ignition is manual (piezo/gun) and the temperature control is mechanical. It does not require an external power supply.
