Project Description

Electric – Indirect Boiling Pan
Power : 21 kW – 400V, 3NPE AC /50-60Hz
Dimension : 900 x 900 x 850/880 mm
Control type : Modulating temperature control
Cooking Surface/Capacity : 100 liters, Ø 630 mm
Net Weight : 145 kg
Gross Weight : 175 kg
Packaging Dimension : 930 x 930 x 1000 mm





Modular Cooking – Grandis

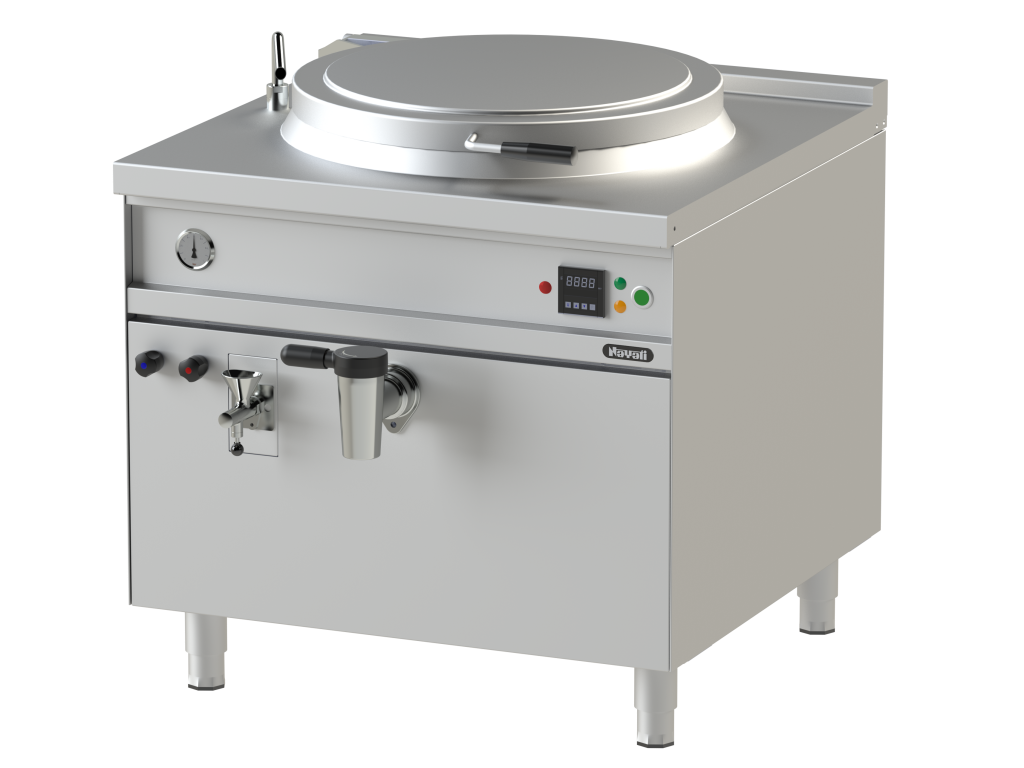

Electric – Indirect Boiling Pan
NEBP 100 GR IND

Modular indirect electric boiling pan with 900 mm depth and 100 liters capacity, powered with 21 kW incoloy heaters.
Usable for cooking liquid food, vegetable, starch meal, sauces soups, or acidic dishes.
Made of AISI 304 with 2 mm top thickness, boiling kettle is made of 3 mm thick AISI 316 bottom and 2 mm thick AISI 304 sleeve. Indirectly heated to improve temperature distribution during boiling and prolong lifetime of the kettle.

13/01/2021

NEBP 100 GR IND
