Project Description

Gas – Wok Kwalie with Blower
Power : LPG/LNG 40 kW
Dimension : 1100 x 900 x 750/850 mm
Control type : Open-close valve
Cooking Surface/Capacity : Ø 330 mm
Net Weight : 221 kg
Gross Weight : 282 kg
Packaging Dimension : 1130 x 930 x 970 mm



Oriental Cooking – Wok Range Chinese Pro

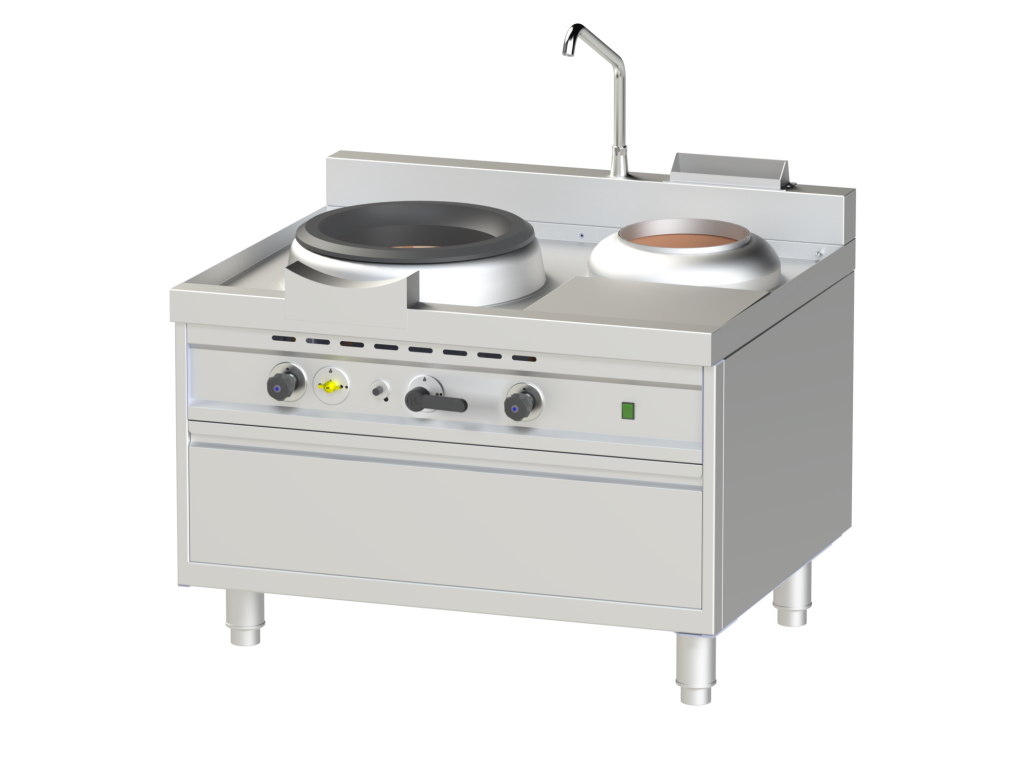

Gas – Wok Kwalie with Blower
NGKB 11-90 W1N1 LBS

Guang Dong style, high-performance single wok with blower. Equipped with a 40 kW premix burner, built in a fire brick chamber for highest thermal efficiency with a low combustion noise of below 70 dBA. The neutral water/soup pan has a capacity of nine liters and is warmed up by the residual heat from the premix wok burner. The wok has a low backsplash and is the perfect solution for an Asian front-cooking kitchen or as an island solution when two woks installed back-to-back.
Slanted, deep drawn 3.2 mm strong, reinforced top panel made of stainless steel AISI 304 with heavy-duty removable cast iron wok rings. Coldwater supply with one swivel faucet mounted on the backsplash, easily operable from the front panel.
The intelligent deck cooling & cleaning system with spray nozzles guarantee an efficient cooling of the top panel and an enhanced hygienic as food debris are flushed away towards the drain channel in the front. The built-in strainer avoids congestions of the drain.
